Our highest quality lift and slide door system.

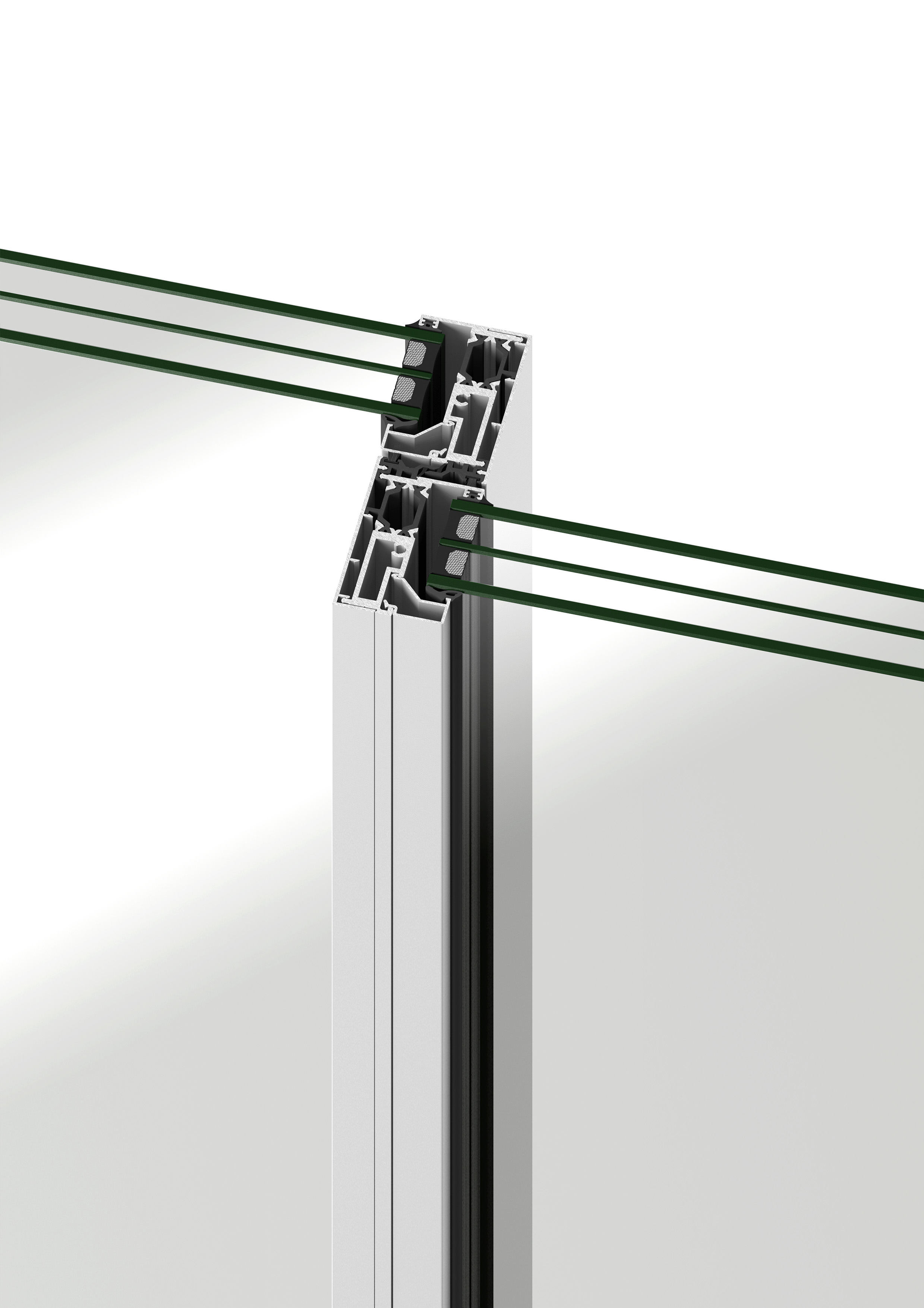

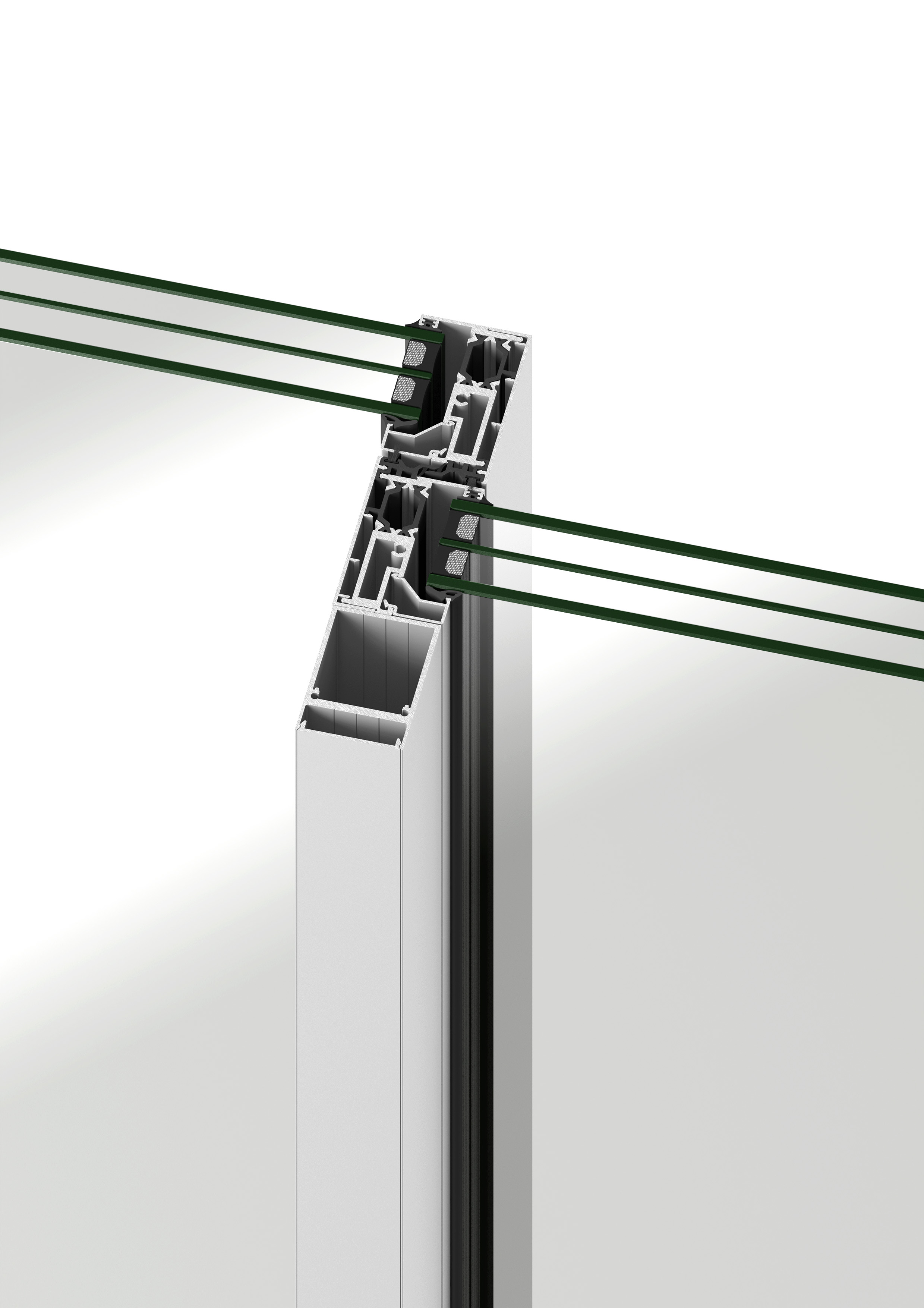

With a central node of only 42 mm, this lift-and-slide has a clean aesthetic that gives spaces maximum spaciousness and minimal visual interference.
Its thermal transmittance with values from 0.9 W/m2K makes it a perfect sliding system for any climate zone without giving up great views.
Dimensions
Glazing
32/42 mm
Maximum dimensionsSash width (L) = 3300 mm
Sash height (H) = 3300 mm
300 kg (Lift iron fitting LS400)
400 kg (Lift iron fitting LS400 and additional trolleys)

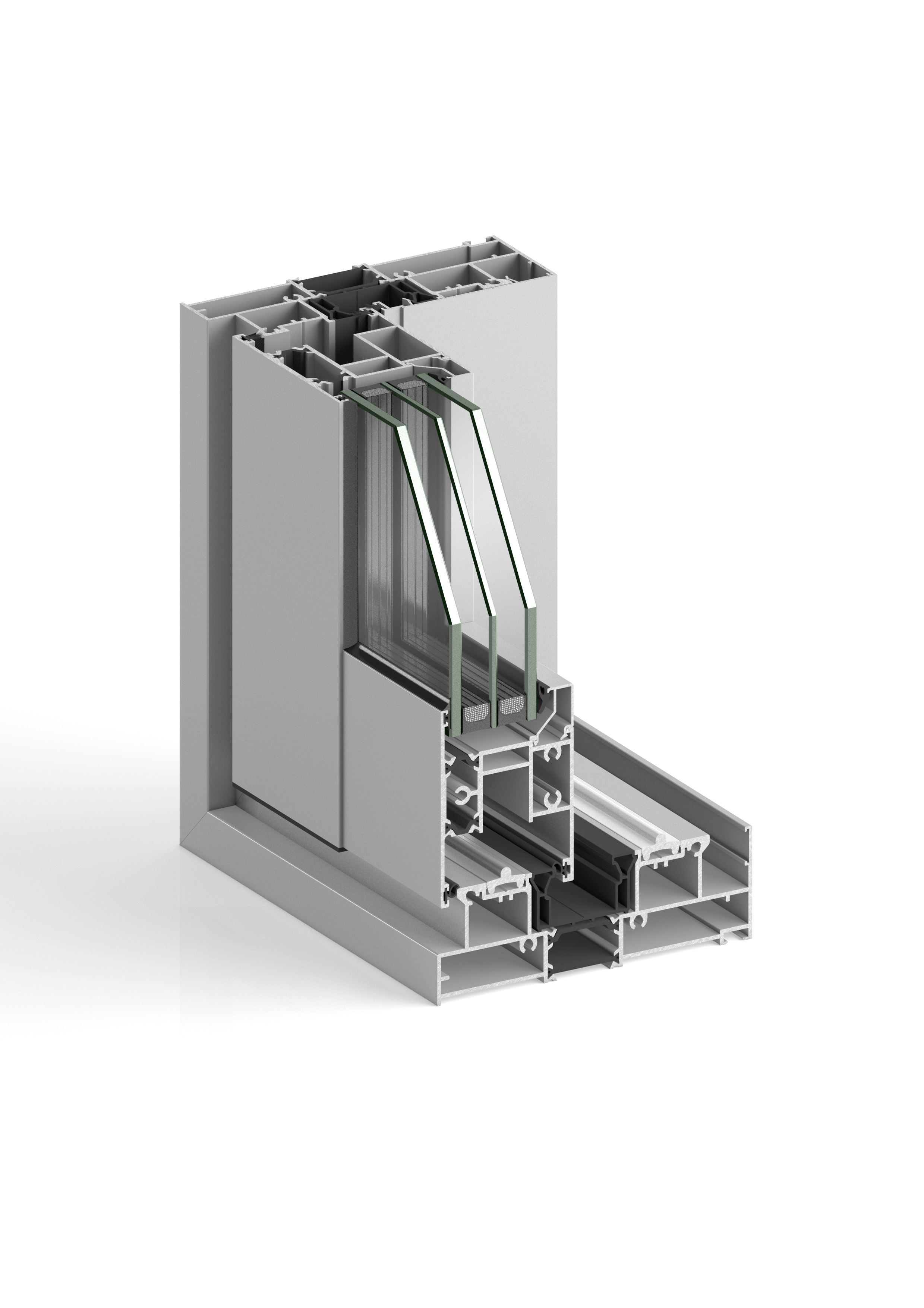

Sections
Frame: 150mm
Straight-cut sash: 65,5 mm
Straight-cut sash: 65,5 mm
Downloads
