With quick factory turnaround times and installation, this option is ideal for those wishing to separate office spaces.
Office partition profiles This allows the combination of cladding profiles and integration of shutters, Venetian blinds and roller blinds.

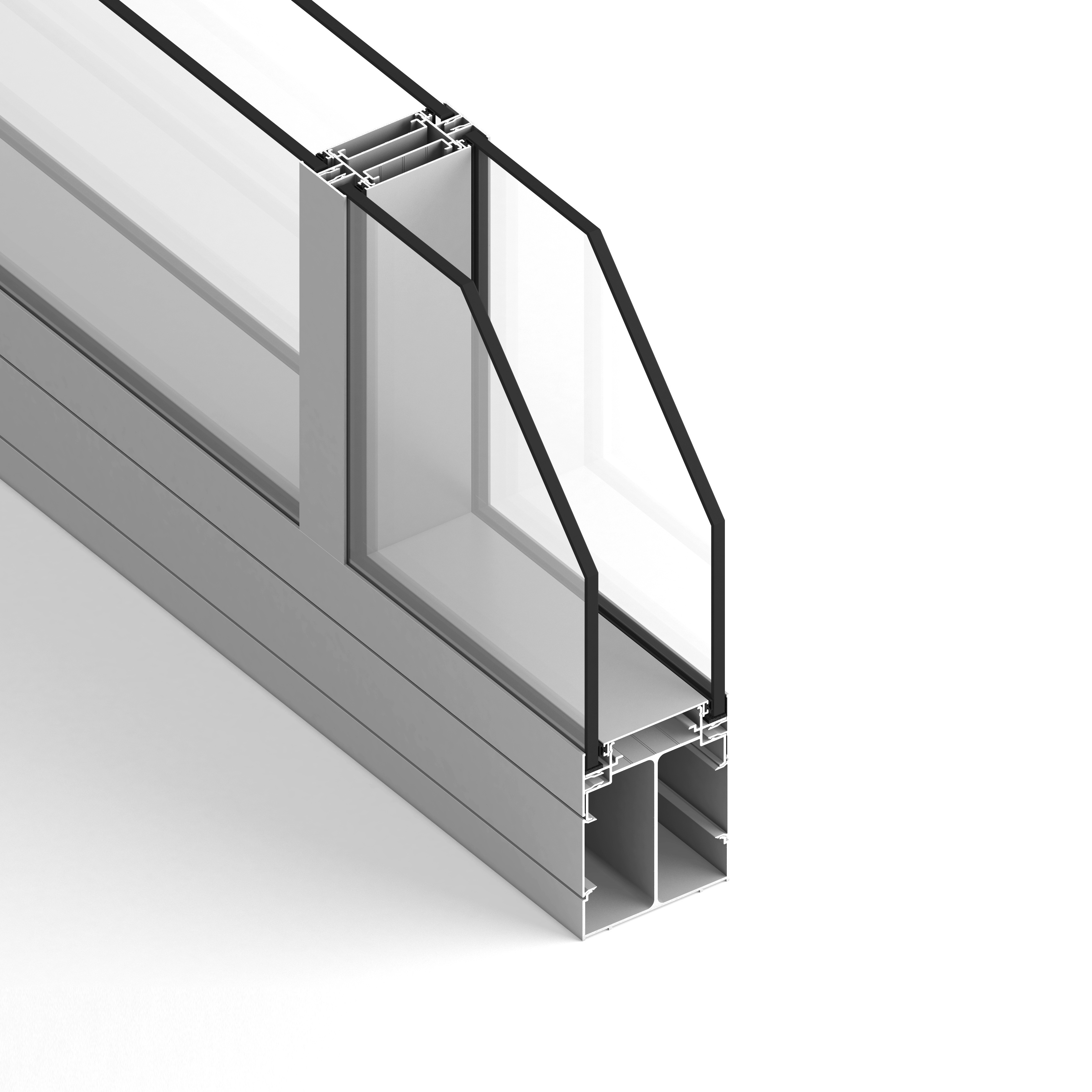

Based on 82 mm base profiles (upright and crosspiece) plus the combination of cladding profiles to be chosen according to needs and aesthetics.
Visible face of 36 mm and total depth of 85.5 mm that allows the integration of venetian blinds and motorized blinds with a 0.42 mm axis.
Possibility of installing glass with total transparency, without visible vertical profiles, of 10 and 12 mm.
Quick fabrication: 90º cuts and assembly with a quick assembly bracket.
6 and 8 mm glazing and 10, 13, 16 and 19 mm wood panels.
Possibility of glass, wood or aluminum doors.
Visible face of 36 mm and total depth of 85.5 mm that allows the integration of venetian blinds and motorized blinds with a 0.42 mm axis.
Possibility of installing glass with total transparency, without visible vertical profiles, of 10 and 12 mm.
Quick fabrication: 90º cuts and assembly with a quick assembly bracket.
6 and 8 mm glazing and 10, 13, 16 and 19 mm wood panels.
Possibility of glass, wood or aluminum doors.
Dimensions
Glazing
Glass: 6 - 8 - 10 - 12 mm
Wooden Panel: 10 - 13 - 16 - 19 mm
Configurations
Configurations
Hinged doors with 35 and 40 mm wood panels
Hinged doors with 8 and 10 mm tempered glass
Aluminum hinged door
Hinged doors with 8 and 10 mm tempered glass
Aluminum hinged door
