The best solution for the most demanding standards.

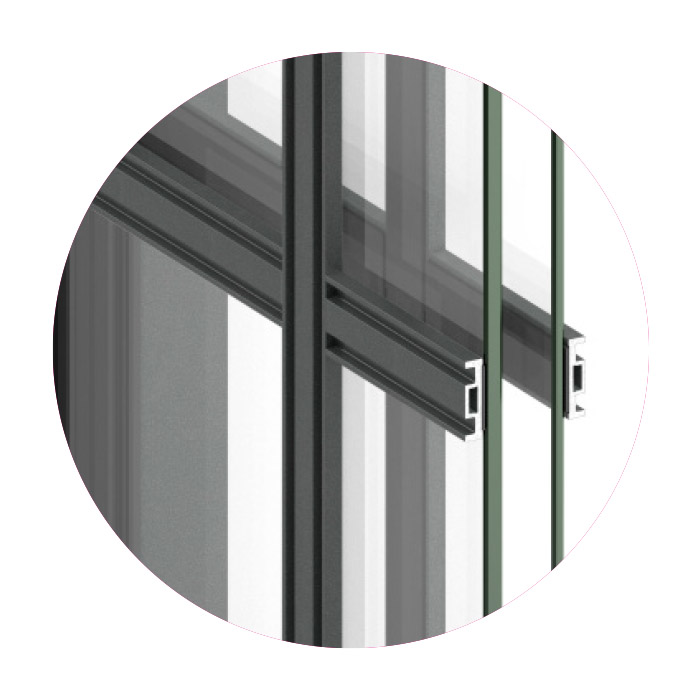

Straight lines with an 82mm frame suitable for the Spanish and French markets. Its thermal reinforcement is complemented by a central cellular EPDM joint and thermally passive foams. Available on European channel and channel 16.

 82mm frames. 90.5mm blades.
 European channel or channel 16. Possibility of visible, hidden, minimalist or invisible sheet.
 Frames for national and French market.
 Aesthetics of straight lines and coplanar to the exterior.
 Option of crosslinked polyolefin foams.
  Central gasket complement in cellular EPDM (optional).
 Insulation reinforced by tubular polyamides and foams in polyamide chambers (optional).
 Double injection or extrusion brackets in both frames and leaves.
 Same internal and external squares for frames and leaves.
 Same profiles of frames, pilasters and investors for all the variants of leaves.
 5mm hinge pitch.
 Compatible with STRUGAL Invisible Glass Line railing and STRUGAL Invisible Hardware handle.
 Also available with Passivhaus Institut certification for category 4 Warm-temperate (warm-temperate).
Performance characteristics
Air permeability
CLASS 4
Watertightness
E2100
Wind resistance
C5
Soundproofing
Rw ≤ 47 dB
Thermal transmittance
Uw ≥ 0,8 W/m2K
Dimensions
Glazing

Maximum thickness 69 mm (44 mm v. HO+CE / 42 mm v HO+C16)

Maximum dimensions

Sash width (L) = 1500 mm
Sash height (H) = 2600 mm

Maximum weight per sash

160 kg (European Groove)
130 kg (Groove 16)

Notional average thickness

1,5 mm

Configurations
Configurations

Passivhaus version.

Hidden sash version.

Minimalist sash version.

European-groove iron fittings or Groove 16.
