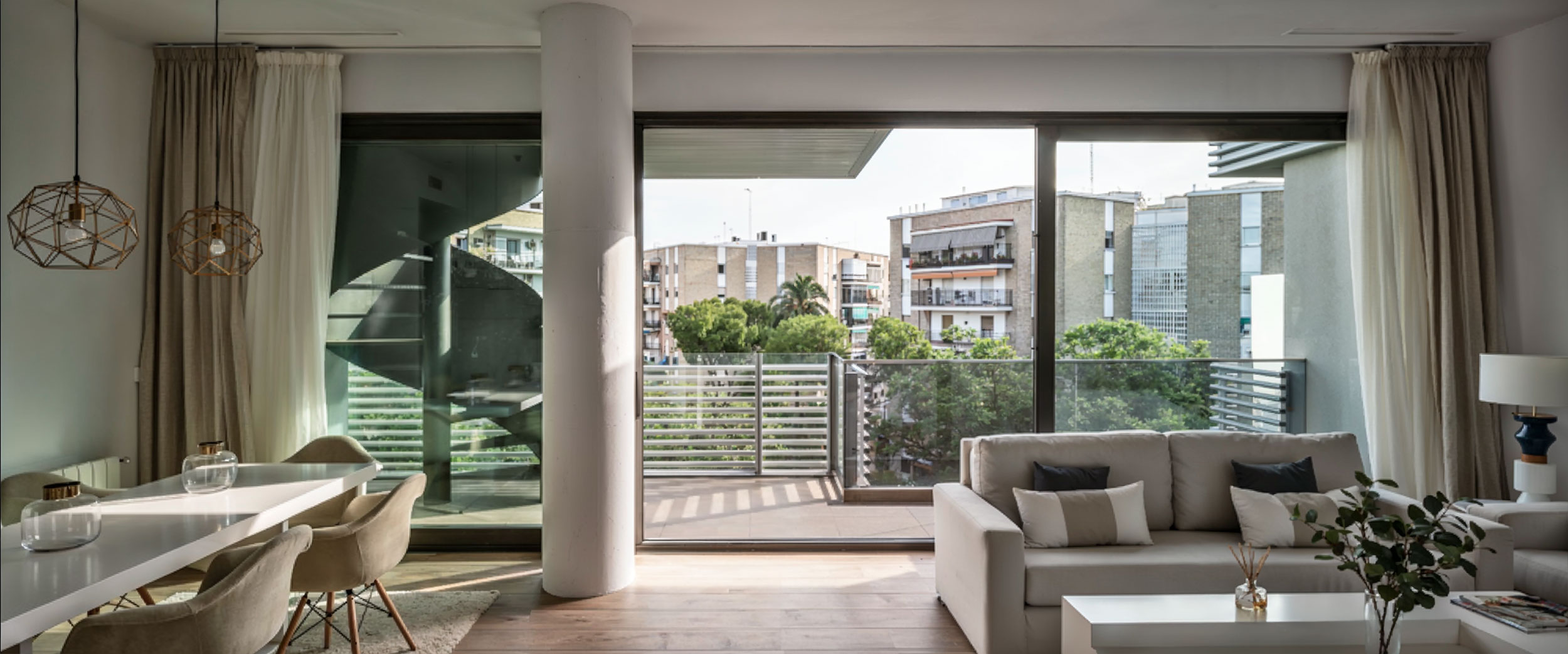

The ideal slide for large dimensions with maximum comfort features.
The straight lines of this lift-and-slide make it one of the most popular for incorporation into large openings. Its fittings, designed for leaves weighing up to 400 kg, make the set a comfortable system with excellent benefits.
125mm frames.
54mm blades.
142 mm reference section
Perimeter frames and sheets assembled with high quality brackets.
High thermal and acoustic performance.
Ideal application to cover large holes.
High-quality self-manufactured lifting fitting.
Fitting designed for heavy leaves, up to 400 kg.
Outside look with straight.
trirail possibility.
Possibility of meeting leaves in a corner at 90º without vertical mullions.
54mm blades.
142 mm reference section
Perimeter frames and sheets assembled with high quality brackets.
High thermal and acoustic performance.
Ideal application to cover large holes.
High-quality self-manufactured lifting fitting.
Fitting designed for heavy leaves, up to 400 kg.
Outside look with straight.
trirail possibility.
Possibility of meeting leaves in a corner at 90º without vertical mullions.
Dimensions
Glazing
Maximum thickness 40 mm
Maximum dimensionsSash width (L) = 3200 mm
Sash height (H) = 3000 mm
400 kg
Notional average thickness1,5 mm
