The most versatile slider with a minimalist aesthetic.
New system for sliding aluminum windows and balcony doors with high thermal performance with refined and minimalist lines.

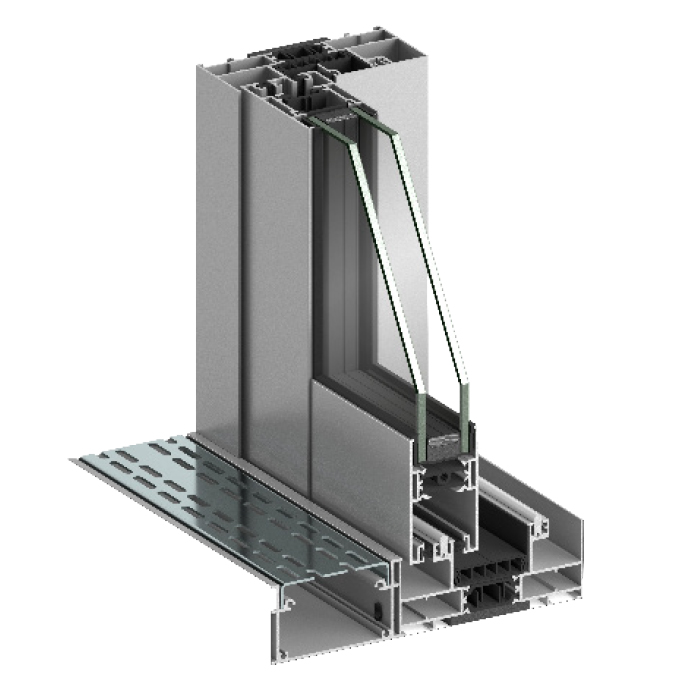

Perimeter frames of 74 mm, 85 and 112 mm.
42 and 46 mm deep straight-cut panes with a visible section of 70 mm for the sliding-opening version and 80 mm for the lift-up version, with the possibility of glazing thicknesses of up to 32 mm.
High thermal performance thanks to its polyamides up to 34 mm in length and multi-chamber PVC-r accessories.
Outside look with straight.
Different insulation options using crosslinked polyolefin foams.
Double frame injection brackets.
Option of monorail, galandage and trirail opening.

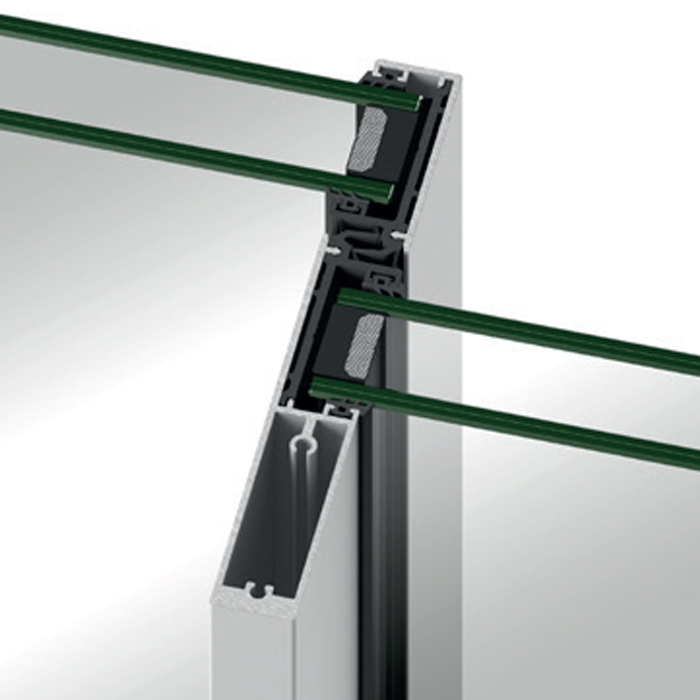

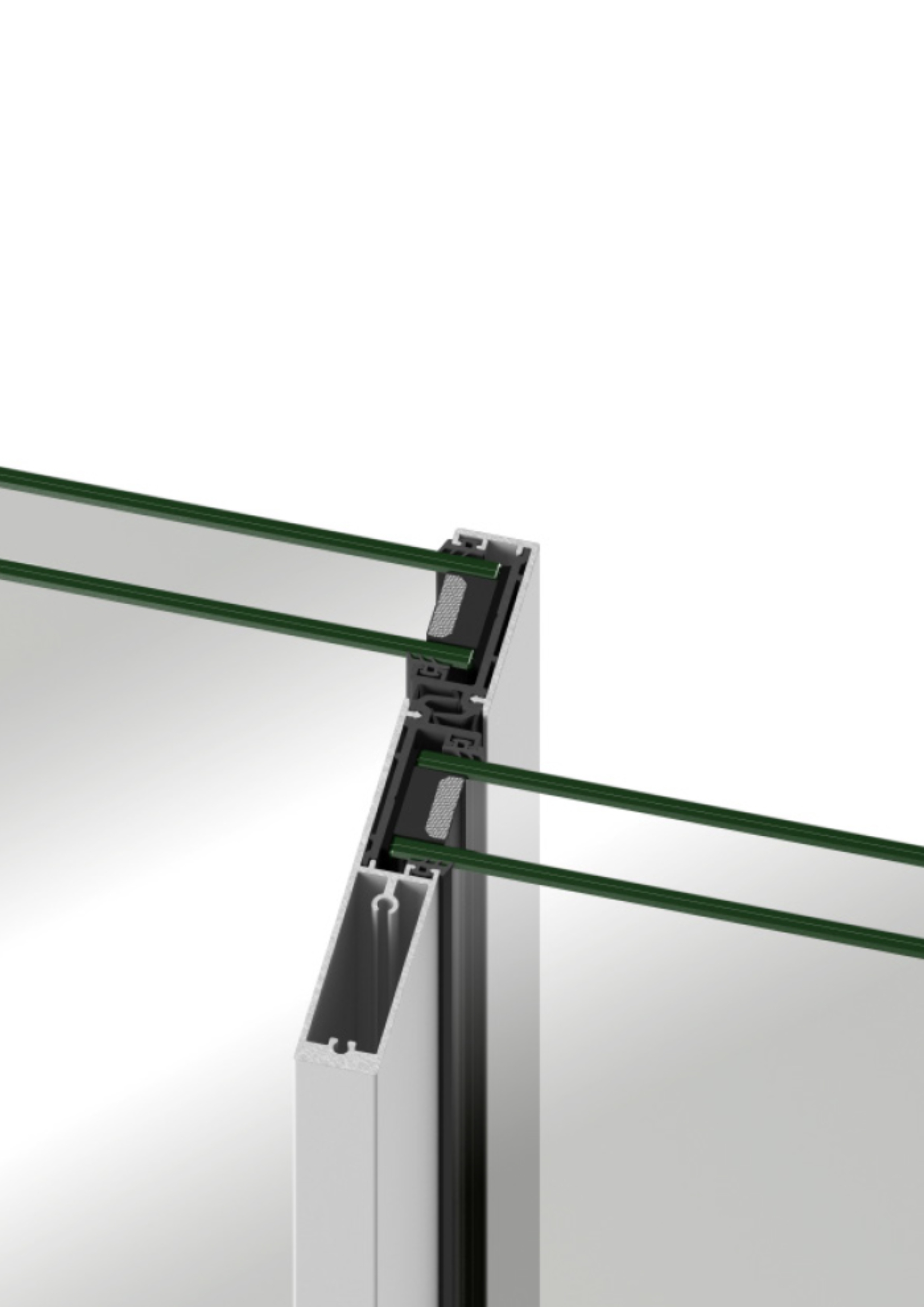

Minimalist central blade of only 34 mm with built-in reinforcement.
Bearings with R.P.T
Multi-point closure system.
42 and 46 mm deep straight-cut panes with a visible section of 70 mm for the sliding-opening version and 80 mm for the lift-up version, with the possibility of glazing thicknesses of up to 32 mm.
High thermal performance thanks to its polyamides up to 34 mm in length and multi-chamber PVC-r accessories.
Outside look with straight.
Different insulation options using crosslinked polyolefin foams.
Double frame injection brackets.
Option of monorail, galandage and trirail opening.
Minimalist central blade of only 34 mm with built-in reinforcement.
Bearings with R.P.T
Multi-point closure system.
Dimensions
Glazing
Maximum thickness 32 mm
Maximum dimensionsSash width (L) = 2300 mm (V. Sliding) - 3300 mm (V. Lifting)
Sash height (H) = 2600 mm (V. Sliding) - 3200 (V. Lifting)
200 kg (V. Sliding)
300 kg (V. Lifting)
