Straight lines and light without sacrificing the best features.
Straight lines, external coplanar and insulation reinforced by tubular polyamides and foams. With the possibility of visible and hidden sheet, and variants in European channel and channel 16.
74mm frames. 82.5mm blades.
European channel or channel 16. Possibility of visible, hidden, minimalist or invisible sheet.
Frame for the domestic and French market.

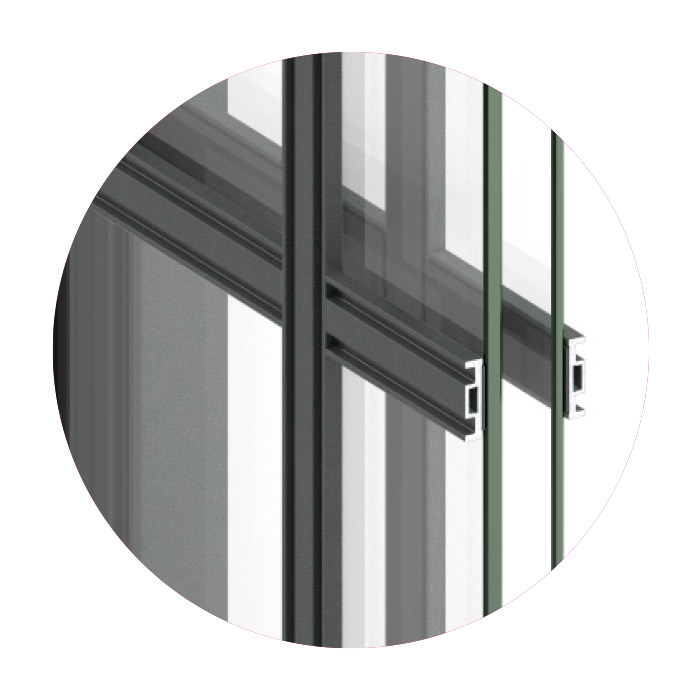

Outside look with straight and coplanar lines.
Optional reticular polyolefin foams.
Cellular EDPM central gasket complement (optional).
Reinforced insulation option by tubular polyamides and chamber polyamide foams..
Injection or extrusion double brackets both in frames and in sashes.
Same interior and exterior brackets for frames and sashes..
Same profiles of frames, pilasters and inverters for all the variants of leaves.
5mm hinge pitch.
Compatible with STRUGAL rail Invisible Glass Line and with handle Invisible Hardware.
European channel or channel 16. Possibility of visible, hidden, minimalist or invisible sheet.
Frame for the domestic and French market.
Outside look with straight and coplanar lines.
Optional reticular polyolefin foams.
Cellular EDPM central gasket complement (optional).
Reinforced insulation option by tubular polyamides and chamber polyamide foams..
Injection or extrusion double brackets both in frames and in sashes.
Same interior and exterior brackets for frames and sashes..
Same profiles of frames, pilasters and inverters for all the variants of leaves.
5mm hinge pitch.
Compatible with STRUGAL rail Invisible Glass Line and with handle Invisible Hardware.
Dimensions
Glazing
Maximum thickness 61 mm (36 mm v. HO+CE / 34 mm v. HO+C16)
Maximum dimensionsSash width (L) =1500 mm
Sash height (H) = 2600 mm
160 kg (European Groove)
130 kg (Groove 16)
1,5 mm
Configurations
Configurations
Hidden sash version
Minimalist sash version.
European-groove iron fittings or Groove 16.
Inward opening
Outward opening
