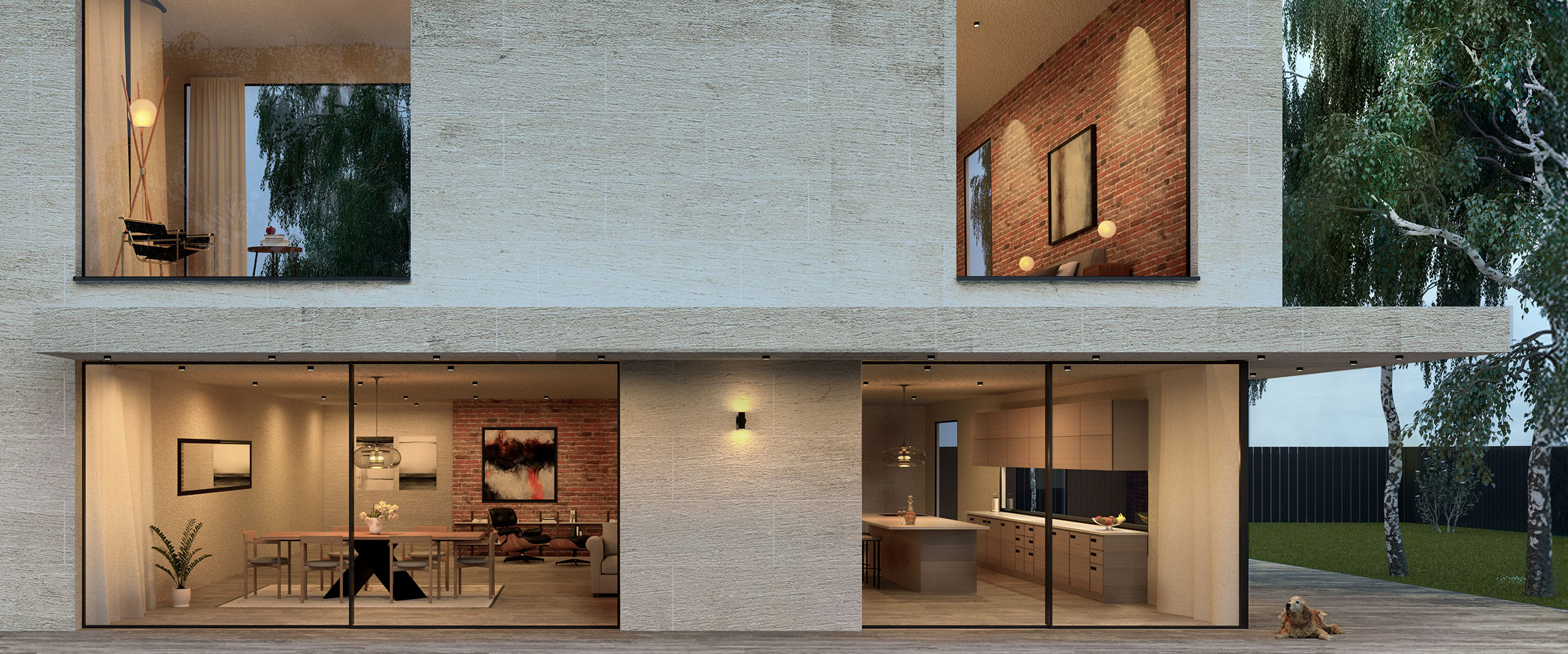

Avant-garde system for sliding windows and doors with an even more minimalist aesthetic thanks to a section of the central knot of only 25 mm and its hidden horizontal leaf profiles. In addition, its versatile nature allows for different configurations and options for side panels and closure systems.
Its functionality makes it possible to adapt to large and small gaps, conquering and unifying all the spaces of your project.
Minimalist aesthetics with a central knot of only 25 mm and hidden horizontal blade profiles.
Possibility to hide the frames in the work.
Diversity of side panels with multi-point closures and key lock, reduced side panels with hidden handles and completely hidden side panels.
Closing system with integrated handle that allows the leaves to be crossed and activated from the outside.
Closure option in the central knot.
Completely hidden trolleys with stainless steel wheels that allow their replacement and avoid thermal bridges.
Possibility of birail, trirail, galandage solutions and meeting of leaves in corners and corner at 90º without vertical mullions.
Maximum thermal and acoustic performance with 32 mm thick safety glazing.
Maximum thickness 32 mm
Maximum weight per sash2 rollings: 250 kg
4 rollings: 300kg
Maximum Dimensions
2 rollings:
- Sash width (L) = 2200 mm
- Sash height (H) = 3000 mm
- Surface max. sheet = 6,5 m2
Maximum Dimensions
4 carros:
- Sash width (L) = 2600 mm
- Sash height (H) = 3200 mm
- Surface max. sheet = 7,5 m2
Minimum Dimensions
- Sash width (L) = 500 mm
- Sash height (H) = 650 mm
Polyamide length
34 / 30 mm
Theoretical average thickness
2,0 mm
